Morx Flag Label

NXP UCODE® 9 UHF RFID flag label for medical device management is a high-performance label with a high-quality coated paper surface, self-adhesive, NXP UCODE® 9 chip, aluminum antenna, double-sided glue and 80g release paper structure. The label has excellent reading distance and reliability, and is suitable for inventory and asset management, specifically targeted at the medical industry to ensure fast and accurate data acquisition and management.

Description

Frequency Band

UHF 860-960 MHz

Chip Type

NXP UCODE® 9

International Standard

ISO/IEC 18000-6C, EPC Global Gen2v2

EPC Memory

96 bits

Operating Temperature

-20 to 50℃

Certificate

WEEE compliant

Physical Specifications

Material: Coated Paper
Label Size: 55×30mm
Inlay Size: 40×20mm

Technical Parameters

Operating Frequency: 860~960 Mhz
Communication Protocol:
ISO/IEC 18000 -6c,EPC Global Gen 2v2
Antenna programming mode:
Aluminum etching(10µm)
Operating Mode: Passive
IC EST Voltage Immunity: 2000V (HBM)

Additional Information

Operating Environment:
-20°C~50°C, 20%~80% RH
Label Attach Environment:
10°C~40°C, 20%~80% RH

Chip Characteristics

Chip Manufacturer: NXP®
Chip Type: UCODE® 9
TID Memory: 96 Bits (read only)
EPC Memory: 96 Bits(read & write)
Read Sensitivity: -24 dBm
Write Sensitivity: -22 dBm
Encoding speed: 32 bits in 0.96 ms
Self Adjust: Automated tag performance optimization
Write Endurance: 100,000 times
Data Retention Time: 20 years
Memory Safeguard: Support

Packaging

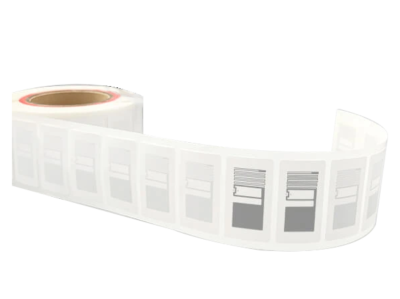

Packing Format:

Packed in roll (ID = 76.2mm, OD ≤ 167mm)
Packing Quantity: 2000±2 PCS/Roll
Operating Precautions:
1. Keep away from water and collision.
2. DO NOT BEND.
