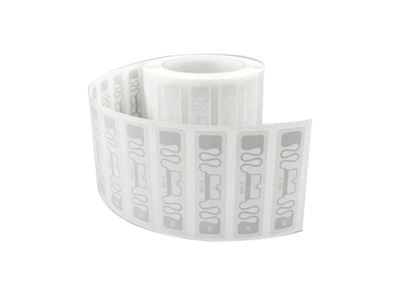

MORX 76*20mm

Retailers can use this ARC-certified RFID label to efficiently record apparel merchandise information and effectively prevent brand counterfeiting. The RFID chip embedded in the label can be identified by RFID readers and the data will be transmitted to the back-end system for analysis and storage. The label is compliant with EPC Global Gen 2v2 and ISO/IEC 18000-6C international communication standards. It is designed for apparel, retail and industrial applications, such as supply chain management, home essentials and brand protection. What’s more, merchandise using this ARC-certified label can be successfully sold in Walmart.

Compare

Category: Tags

Description

Frequency Band

UHF 860-960 MHz

Chip Type

NXP UCODE 8

International Standard

EPC C1G2 (ISO18000-6C) and EPC Gen2v2

EPC Memory

96 bits

TID Memory

48 bits

Max Read Range (2W ERP FCC)

11m

Specifications

Physical Specifications

Material: Coated Paper
Size: 76×20 mm
Antenna Size: 70×14 mm

Technical Parameters

Operating Frequency: 860~960 Mhz
Communication Protocol:
ISO/IEC 18000 -6c,EPC Global Gen 2v2.1
Read Range:
Up to 17.5m (ETSI standard)
Up to 11m (FCC standard)
ESD Voltage Immunity: Max.2000V
Operating mode: Passive

Chip Characteristics

Chip Manufacturer: NXP®
Chip Type: NXP UCODE® 9
Data Retention: 20 years
EPC memory: 96 Bits
User memory: 0 Bits
TID memory: 48 Bits
Rserved Memory:
Access Password(0 bit)
Kill Password(32 bits)
Write Endurance: 100,000 cycles
Read/Write sensitivity (dBm):
-16.5 dBm (ETSI standard)
-7.5 dBm (FCC standard)

Additional Information

Operating Environment:
Label attach: 10°C~40°C, 20%~80% RH
After label attached: -20°C~50°C, 20%-80% RH
Storage Environment:
18°C~28°C, 40%~60% RH
Handling Precautions:
1. Do not bend
2. Keep away from water and collision
3. Labels with black-dot marks are bad ones, do not use.

Packaging

Packing Format:
Packed in roll, vacuumed packing in ESD bag
Roll OD Size: Max. 120 mm
Core Size: 3 inch/ 76 mm
Packing Quantity: 1000 Pcs/roll
