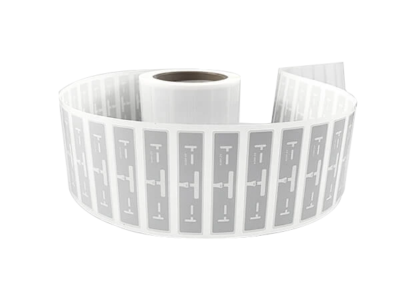

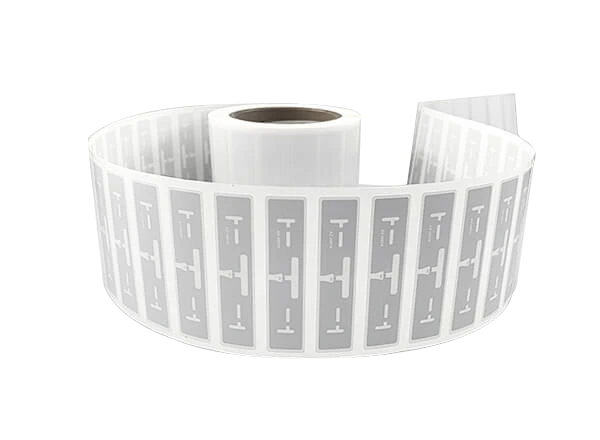

MORX 74*18mm
This ARC certified RFID label can be used in clothing retail, supply chain management and brand protection. They not only fully conform to the ISO/IEC 18000-6C and EPC Gen2 standards, but their inlays have also completely passed the ARC certification standards tests.
Description
Features
Frequency Band
UHF 860-960 MHz
Chip Type
Impinj®M730
International Standard
ISO/IEC 18000-6C, EPC Global Gen2v2
EPC Memory
128 bits
Max. Reading Range(2W ERP FCC)
17 meters
Max. Read Range (2W ERP ETSI)
20 meters
Specifications
Physical Specifications
Material: Coated Paper
Size: 17×73mm
Antenna Size: 14×70mm
Technical Parameters
Operating Frequency: 860~960 Mhz
Communication Protocol:
ISO/IEC 18000 -6c,EPC Global Gen 2v2
Read Range:
865-868 MHz(EU) Up to 17m
902-928 MHz(US)Up to 20m
ESD Voltage Immunity: Max 2000V
Operating mode: Passive
Chip Characteristics
Chip Manufacturer: Impinj®
Chip Type: Impinj® M730
EPC memory: 128 Bits
User memory: 0 Bits
TID memory: 48 Bits
Access & Kill Password: Shared 32 Bits
Write Endurance: 10000 cycles
Read/Write sensitivity (dBm):
-19 dBm (ETSI standard)
-20 dBm (FCC standard)
Additional Information
Operating Environment:
Label attach: 10°C~40°C, 20%-80% RH
After label attached: -20°C~50°C, 20%~80% RH
Storage Environment:
18°C~28°C, 40%~60% RH
Handling Precautions:
1. Do not bend
2. Keep away from water and collision
3. Inlays with black-dot marks are bad ones, do not use.
Packaging
Packing Format:
Packed in roll, vacuumed packing in ESD bag
Roll OD Size: Max. 230 mm
Core Size: 3 inch/ 76.2 mm
Packing Quantity: 6000 pcs/roll, 4 rolls/ctn
Carton Dimension: 255×255×380mm
