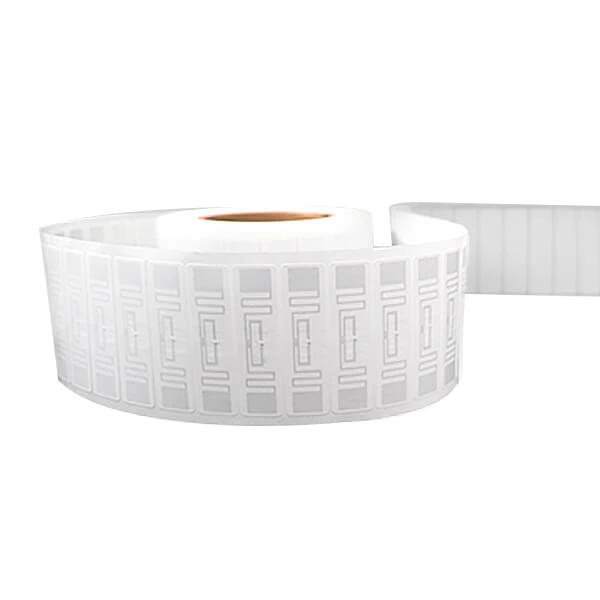

Morx 73*20mm

The M730 RFID Label is a high-performance, versatile label designed for various industrial and commercial applications. Leveraging the advanced Impinj M730 chip, this label enables solutions for high-speed inventory counting, loss prevention, frictionless self-checkout, and seamless product returns. With a range of EPC and user memory configurations, including cryptographic authentication capabilities, the M730 RFID Label provides unparalleled versatility and security for diverse applications.

Description

Frequency Band

UHF 860-960 MHz

Chip Type

Impinj® M730

International Standard

ISO/IEC 18000-6C, EPC Class1 Gen2

EPC Memory

128 bits

Password Memory

Access / Kill shared

Certificate

WEEE compliant

Physical Specifications

Material: PET
Label Size: 73×20mm
Antenna Size: 70×14mm
Antenna: Etched Aluminum(10µm) + PET (50µm)

Technical Characteristics

Operating Frequency: 860-960 MHz
Communication Protocol:
ISO/IEC 18000-6c, EPC Class 1 Gen 2
Operating Mode: Passive
Write Sensitivity(dBm): -21
Reading Sensitivity(dBm): -24

Chip Characteristics

Chip Manufacturer: Impinj®
Chip Type: M730
Password memory: Access/Kill shared
EPC Memory: 128 Bits
TID Memory: 96 bits
User memory: 0 bits
Tag Data Protection: Protected Mode
Omnidirectional Reading: Impinj Core3D Antenna
ESD Voltage Immunity: Max 2000V

Useful Information

Storage Environment:
Temperature 10°C~40°C, Humidity 20%~80% RH
Operating Environment:
Temperature -20°C~50°C, Humidity 20%~80% RH
Shelf Life:
1 year at 23±5°C/50%±10% RH),sealed in the vacuum bag and avoid direct sunlight exposure.
Handling Precautions:
High-volume retail industry , automotive industry , supply chain and logistics , high-sensitivity scenarios

Packaging

Packing Quantity: 5000 pcs/roll
Packing Method: Label Size: Packed in roll, vacuumed packing in ESD bag
Reel core inner dimension: 76.2mm/3¨
Installation: Directly stick on objects
