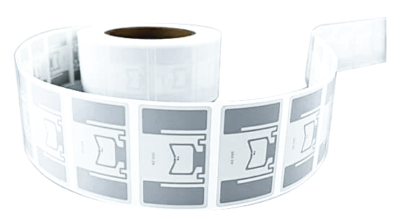

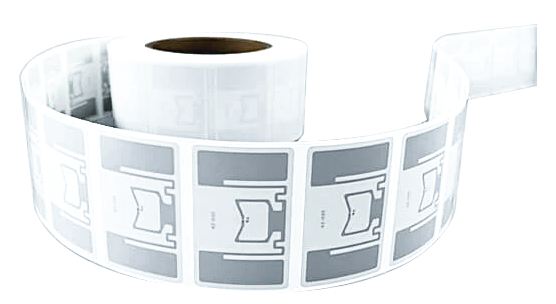

Morx 54*33mm

The ARC-certiﬁed RFID label is available to Walmart merchants for recording apparel and other item-level retail information, supply management and brand protection against counterfeiting. The RFID chip is embedded in the label and the data inside the chip is detected by the RFID reader and transmitted to the system for control of the required information. In addition, the RFID label can be used for EPC Class1 Gen2 and ISO/IEC 18000-6C international standard protocols.

Description

Frequency Band

UHF 860-960 MHz

Chip Type

NXP Ucode® 9

International Standard

EPC C1G2 (ISO18000-6C) and EPC Gen2v2

EPC Memory

96 bits

User Memory

32/ 64 bits

Max. Reading Range (2W ERP ETSI)

24 meters

Specification

Physical Specifications

Material: Coated Paper
Size: 54×34mm
Antenna Size: 50×30mm

Technical Parameters

Operating Frequency: 860~960 Mhz
Communication Protocol:
ISO 18000 -6c,EPC Global Gen 2v2
Read Range:
865-868 MHz (EU): Up to 17m
902-928 MHz (US): Up to 20m
ESD Voltage Immunity: Max 2000V
Operating mode: Passive

Chip Characteristics

Chip Manufacturer: NXP®
Chip Type: UCODE® 9
Data Retention: 20 years
EPC memory: 96 Bits
User memory: 0 Bits
TID memory: 48 Bits
Reserved Memory:
Access Password(0 bits)
Kill Password(32 bits)
Write Endurance: 100,000 times
Read/Write sensitivity (dBm):
-23 dBm (ETSI standard)
-22 dBm (FCC standard)

Packaging

Packing Format:
Packed in roll, vacuumed packing in ESD bag
Roll OD Size: Max. 230 mm
Core Size: 3 inch/ 76.2 mm
Packing Quantity: 3500±100 Pcs/roll
Carton Dimension: 255×255×300mm

Additional Information

Operating Environment:
Label attach: 10°C~40°C, 20%~80% RH
After label attached: -20°C~50°C, 20%~80% RH
Storage Environment:
18°C~28°C, 40%~60% RH
Handling Precautions:
1. Do not bend
2. Keep away from water and collision
3. Inlays with black-dot marks are bad ones, do not use.
