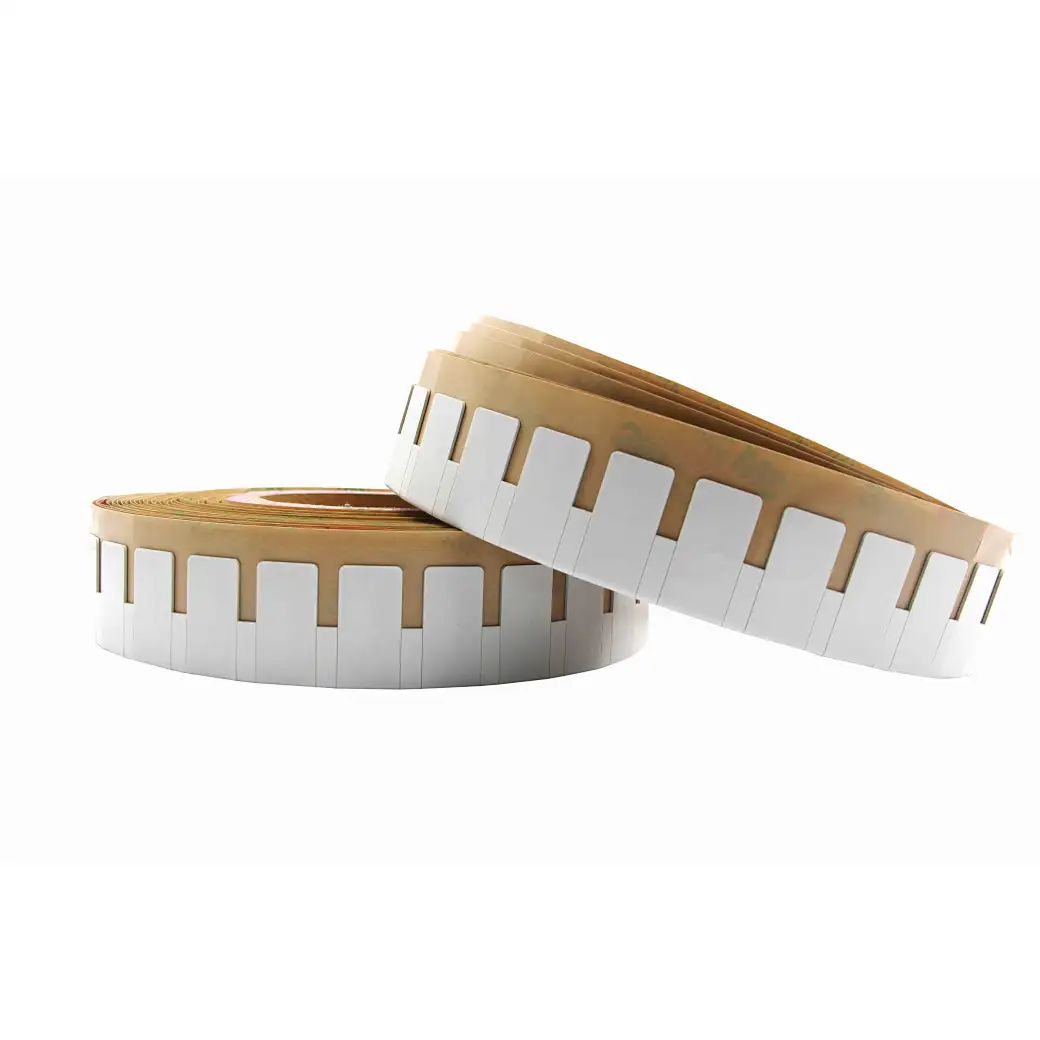

MORX 30*15mm

The Flexible & Printable UHF On-Metal Label is a durable, customizable, high-performance RFID label that can be easily printed and encoded. The label is ideal for metallic container tracking, equipment & device tracking, warehouse shelf tracking, automotive components tracking, IT asset tracking, etc. It can be stuck to metallic assets easily, especially on irregular and uneven surfaces.

Compare

Category: Tags

Description

Features

Frequency Band

UHF 860-960 MHz

Chip Type

NXP UCODE 8

International Standard

EPC C1G2 (ISO18000-6C) and EPC Gen2v2

EPC Memory

128 bits

IP Rating

IP68, test for 5 hours at 1m deep water

Certificate

WEEE compliant

Specifications

Physical Specifications

Material: PET & Aluminum Foil & Foam
Label Size: 30×15×1.25 mm
IP Rating: IP68; test for 5 hours at 1 meter deep water
Personalized Printing: Logo, barcode, QR code, number printing, encoding, etc.

Additional Info

Support Printer:
SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc
Application:
Metallic container tracking, equipment and device tracking, Warehouse shelf, Automotive components tracking, IT asset tracking, etc

RF Specifications

IC type: NXP ® Ucode®8
Support protocols: ISO|IEC 18000-6C EPC Global Gen2
Frequency: 860–960 MHz
Read/Write EPC: 128 bits
TID Memory: 96 bits
Read Sensitivity: -23 dBm
Write Sensitivity: -18 dBm
Read Distance (Fixed Reader): 2.7m on-metal, 1.7m off-metal (FCC standard)
Read Distance (Handheld Reader): 1.5m on-metal, 1m off-metal (FCC standard)
Access password: 32 bits
Data Retention: > 10 years
Write Endurance: 100,000 times

Environmental Spec

Operating Limits: -40° ~ 85°C
Storage Limits: -40° ~ 120°C

Packaging

Packing quantity: 500 pcs/roll
Packing method: Packed in roll
Reel core inner diameter: 76.2 mm /3″
Installation: Directly stick on objects
